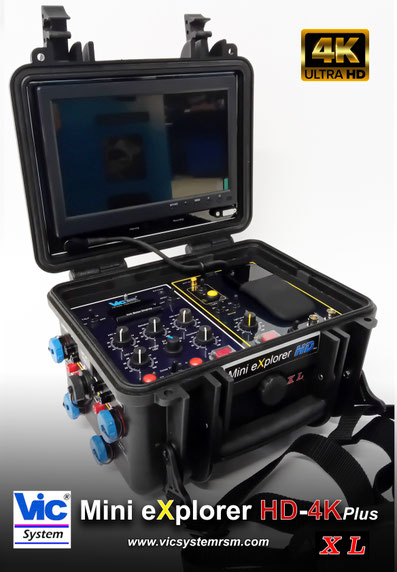

New XL version - 2026

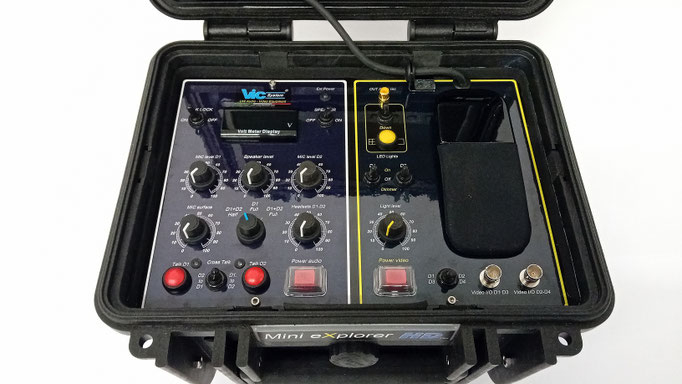

Integrated Audio-Video portable system for underwater surveying and video inspection with audio communication system embedded full-half duplex.
Up to four divers, camera and light, and a supervisor.
Fully compatible with all video signals and underwater cameras, analog and digital.
Suits well with the old video umbilical on coaxial or twisted cable.
The XL version, compared to the standard Mini eXplorer HD 1080p and HD-4K versions, differs in the case size, just 4 cm higher, supports 4 divers as video and light, and it's equipped with a long life battery more powerful, making this XL version ideal for jobs that require longer times.
Best quality on the market , crystal clear images, compact design, light weight, long life internal battery, these are some strengths that make it unique than other brands.
Main features:

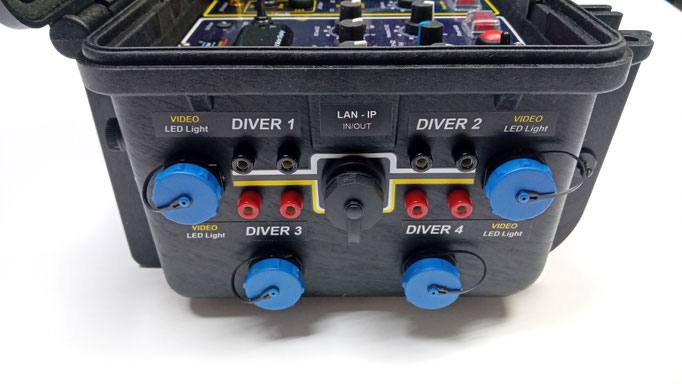

- - 4 Video-Lights Inputs sockets 4K 3480H x 2160V; AHD, CVBS, IP ONVIF, TVI, HD-CVI - 4K- 5MP - 4MP - 2MP - 1080P 25fps
- - Fully compatible with all range of underwater cameras on the market and video sources, analog and digital.
- - It’s possible to use the old video umbilical with the coaxial wire or the twisted cable up to 500 Mt in length

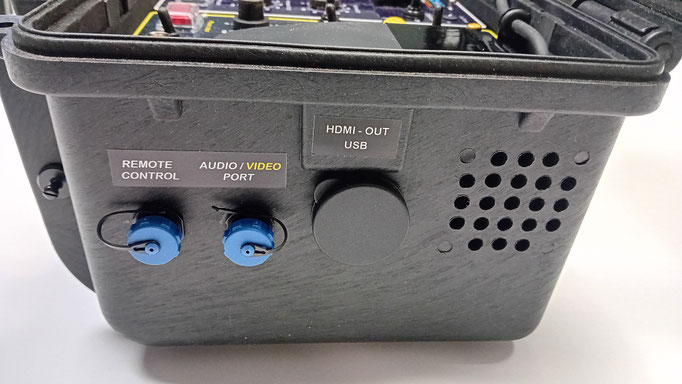

- - 1 HDMI Full HD 4K video output for wide monitors or HDMI video split
- - 1 AUX HDMI VIDEO INPUT ON THE SCREEN PANEL FOR EXTERNAL SOURCES

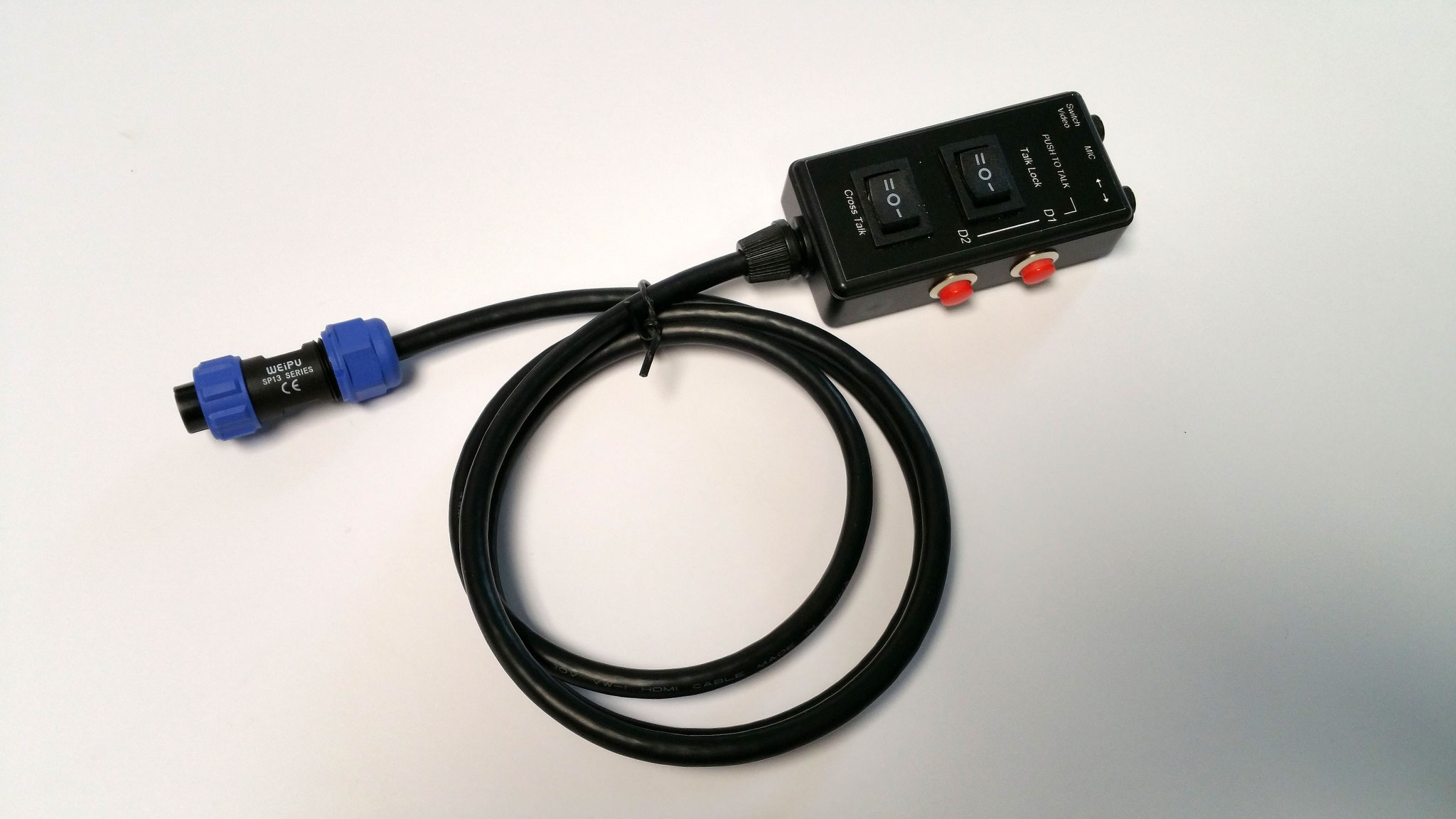

- - QUAD SCREEN OR FULL SCREEN SWITCH SELECTOR ON THE MAIN PANEL AND ON THE REMOTE CONTROL
- - Management and setup by the Touchpad or Mouse
- - Texts Overlay for each of the 4 video channels (60 characters- Digits)
- - Embedded screen size: 10,1” or wider screen externally
- - Bright digital voltmeter

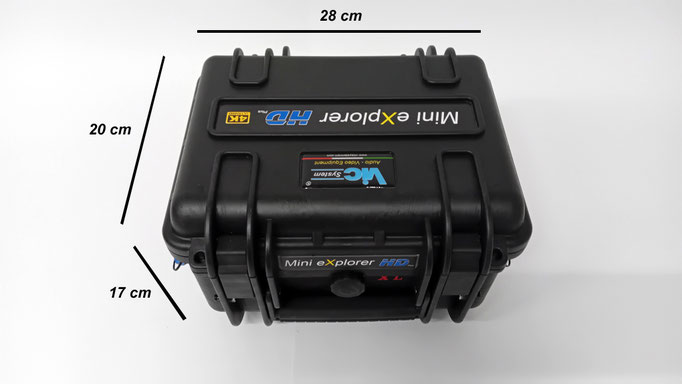

- - Fully portable - Small size and lightweight: 20x28x17 cm - 7,4Kg (It can be used even as fixed station + ex monitors+fixed base microphone)
- - Built-in long life internal battery of 12 Ah-(about 9 ours full load)

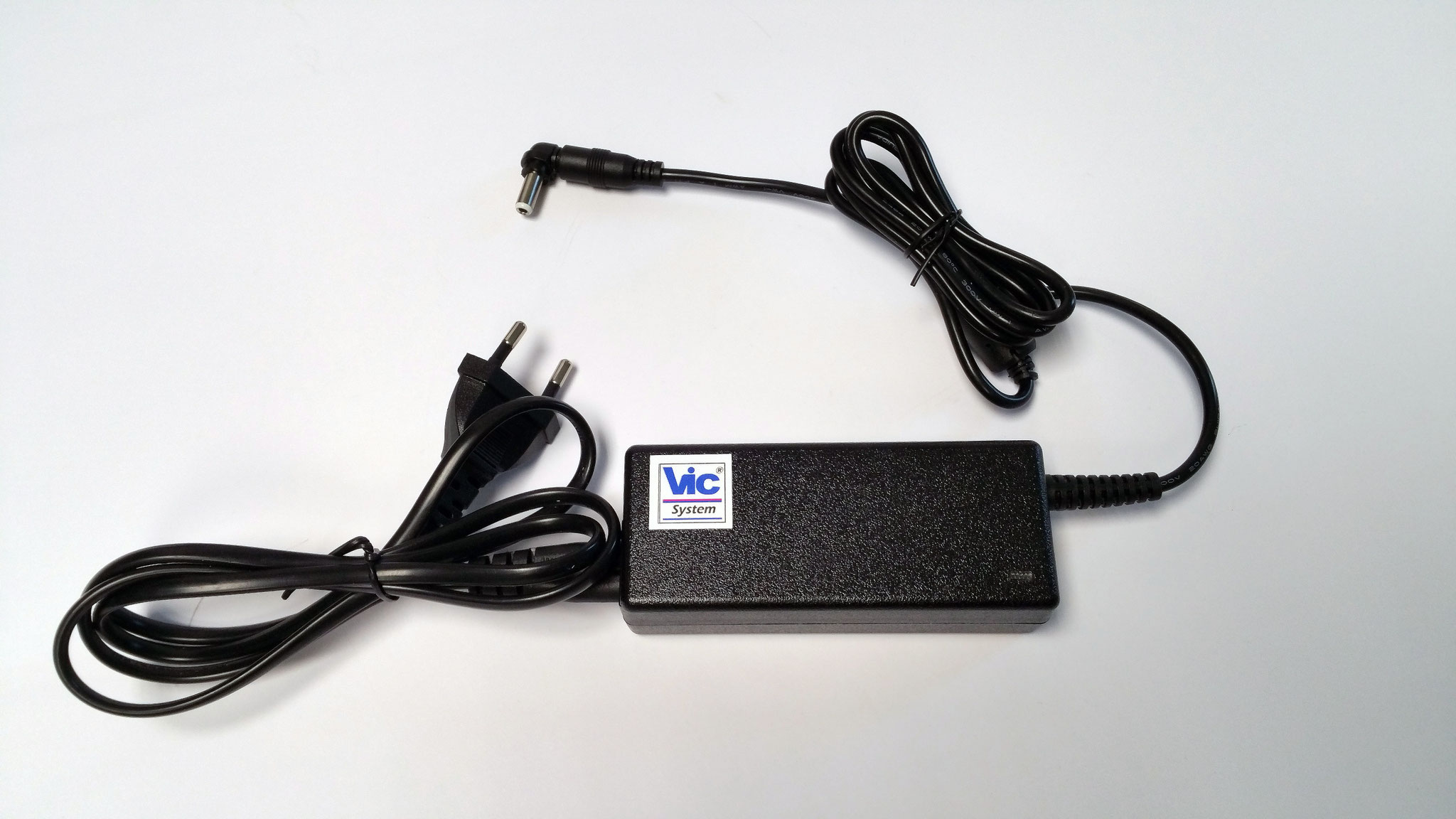

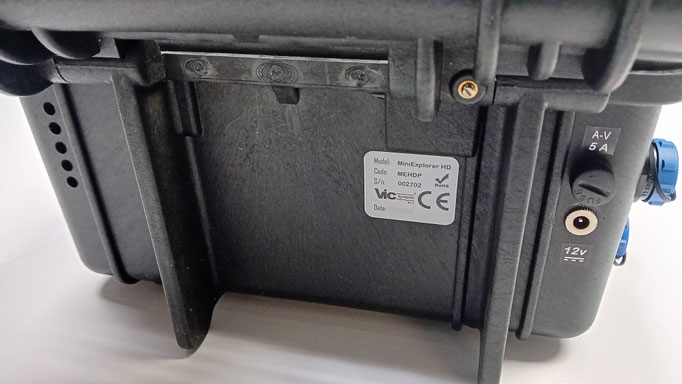

- Backup battery socket - Powered by 110-240 Vac -12v -

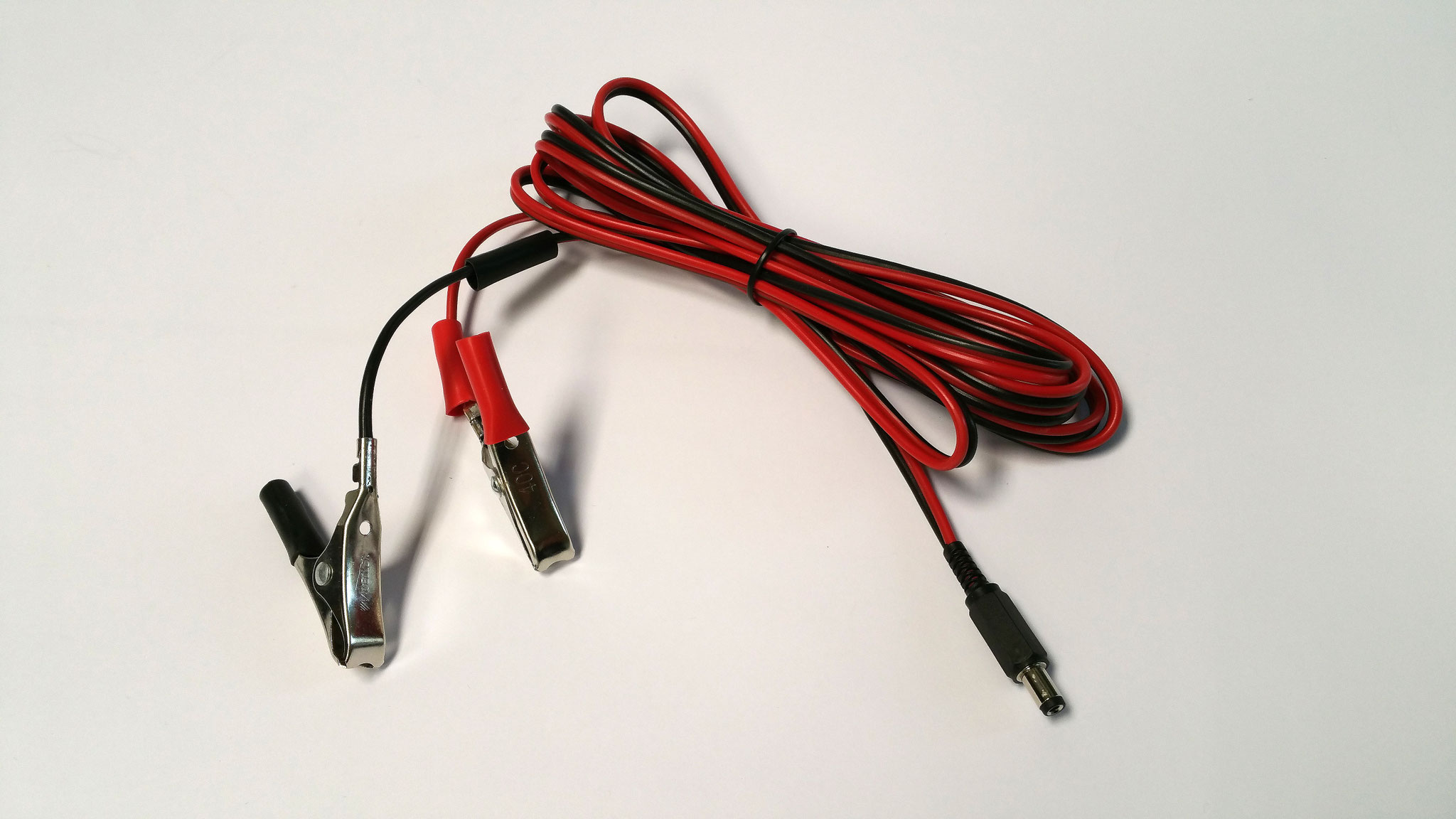

- External battery - 12v Power by the adapter cord

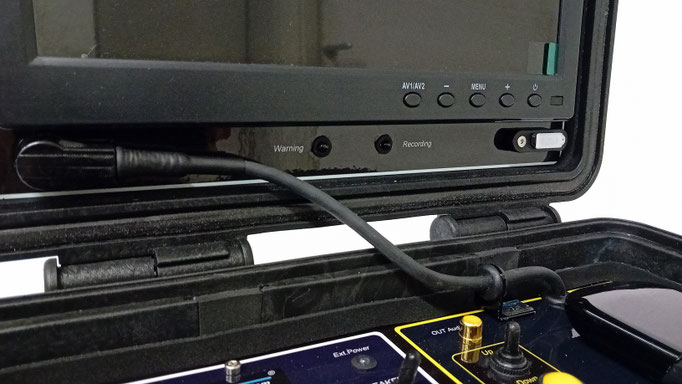

- - Warning and Rec led indicator on the screen panel

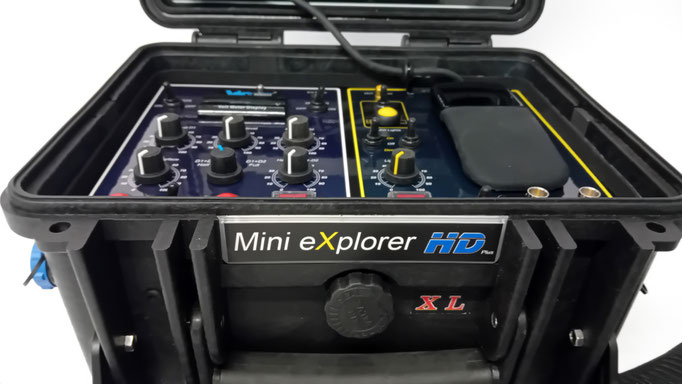

- - Two separate dimmer control switches on the main panel (Diver1 and Diver2)
- - Built-in SSD storage 1 TB - About 120 hours at full quality
- - Backup and redundant recording by the USB external memory - storage HDD - or Net storage
- - Fully network Connectivity and live-streaming over local WI-FI and internet
- - Remote management by PC Windows, Mac and smartphone by the Remote Explorer APP for Android that allows also the talking at distance to the local supervisors directly through the speaker of the surface unit from remote
- - Crystal clear real time pictures and playback.
For the audio features and the standard accessories description, please refers to the User Giude below.
