NEWS - VicSystemRSM  invents





TESLA



The innovative underwater connector without metal contacts



OFFICIAL DEMO MOVIES - ENGLISH and ITALIAN

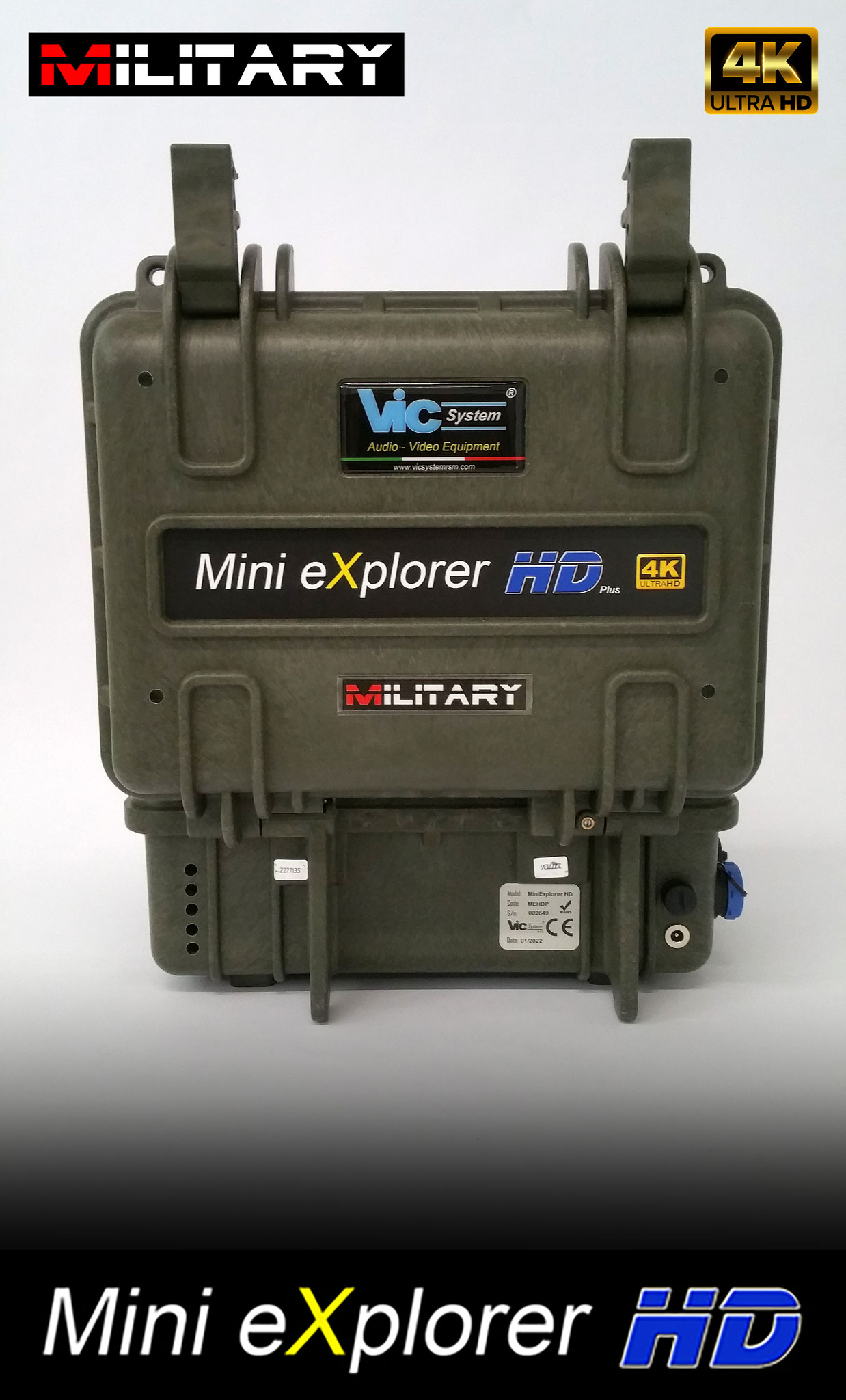

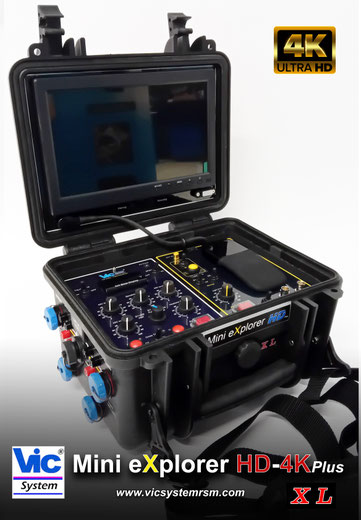

Mini eXplorer HD 4K

STANDARD ACCESSORIES

OPTIONAL ACCESSORIES

New 4K Integrated Audio-Video portable system for underwater surveying and video inspection with audio communication  embedded up to two divers and a supervisor full-half duplex.



Fully compatible with all video signals and underwater cameras, analog and digital.
Suits well with the old video umbilical on coaxial or twisted cable. It's possible to upgrade the previous version HD 1080p.



Best quality on the market , crystal clear images, compact design, light weight, long life internal battery, these are some strengths that make it unique than other brands.

Main features:

  • - 4 Video Inputs 4K 3480-H x 2160-V;  AHD, CVBS, IP ONVIF,          TVI,  HD-CVI    -   4K- 5MP - 4MP - 2MP - 1080P 25fps
  • - Fully compatible with all range of underwater cameras on the          market and video sources, analog and digital.
  • - It’s possible to use the old video umbilical cable with the coaxial      wire or the twisted cable up to 500 Mt in length
  • - 1 HDMI Full HD 4K video output for wide monitors or HDMI          video    split
  • - 1 AUX HDMI VIDEO INPUT ON THE SCREEN PANEL FOR          EXTERNAL SOURCES
  • - QUAD SCREEN OR FULL SCREEN SWITCH SELECTOR ON      THE MAIN PANEL AND ON THE REMOTE CONTROL
  • - Management and setup by the Touchpad or Mouse
  • - Texts Overlay for each of the 4 video channels (60 characters-        Digits)
  • - Embedded screen size: 10,1” or wider screen externally
  • - Bright digital voltmeter
  • - Fully portable - Small size and lightweight: 20x31x14 cm - 5,5Kg     (It can be used even as fixed station + ex monitors+fixed base         microphone)
  • - Built-in long life internal battery - Backup battery socket   -              Powered by 110-240 Vac -12v  - External battery - 12v Power          adapter cord
  • - Warning and Rec led indicator on the screen panel
  • - Two separate dimmer control switches on the main                          panel  (Diver1 and Diver2)
  • - Built-in SSD storage 1 TB - About 120 hours at full quality
  • - Backup and redundant recording by the USB external memory -      storage HDD - or Net storage
  • - Fully network Connectivity and live-streaming over local WI-FI        and internet
  • - Remote management by PC Windows, Mac and smartphone by       the Remote Explorer APP for Android SO
  •    that allows also the talking at distance to the local supervisors         directly through the speaker of the surface unit from remote
  • - Crystal clear real time pictures and playback.

For the audio features and the standard accessories description, please refers to the

MiniExplorer Deluxe Plus user guide.



ASK QUOTE

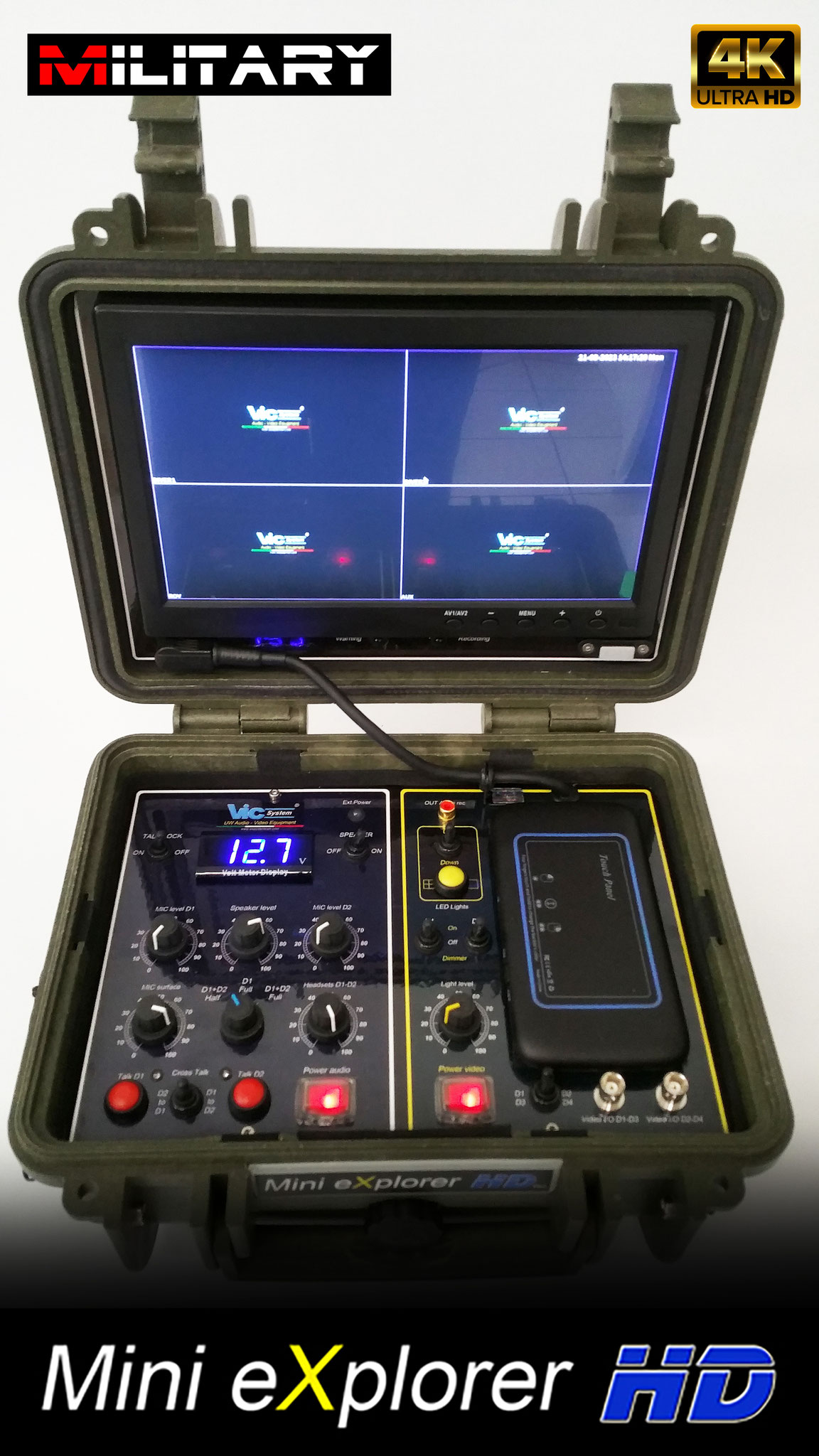

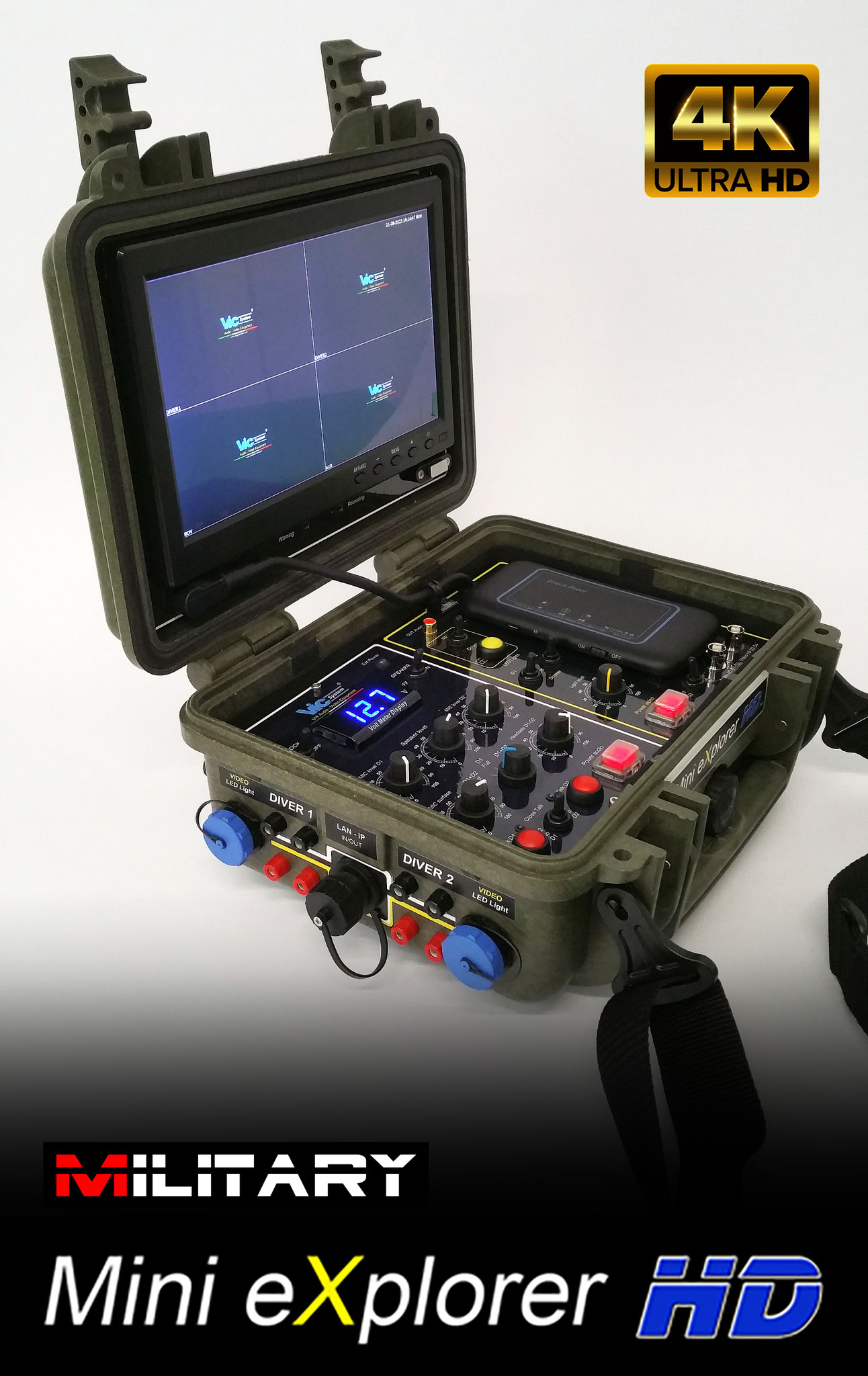

Mini eXplorer HD Plus




Main features:



  • 4 Video imputs
  • Fully compatible with all range of underwater cameras on the market and video sources, analog and digital; AHD, CVBS, IP ONVIF, TVI, HD-CVI
  • Can be used the old video umbilical  with coaxial or twisted cables up to 500 Mt in length
  • 1 HDMI Full HD 1080 video output for wide monitors or HDMI video splitter
  • 1 AUX HDMI VIDEO IMPUT ON THE SCREEN PANEL FOR EXTERNAL SOURCES (optional on demand)
  • QUAD SCREEN OR FULL SCREEN SWITCH SELECTOR ON THE MAIN PANEL AND ON THE REMOTE CONTROL
  • Management and setup by the Touchpad or Mouse (on demand )
  • Screen size: 10,1”
  • Wired multifunction remote control with integrated microphone
  • Bright digital voltmeter
  • Fully portable - Small size and lightweight: 24x31x14 cm - 5,5 Kg
  • Long life internal battery
  • Backup battery socket with protection against polarity inversion
  • Warning and rec led indicator on the screen panel
  • Separate dimmer control switches on the main panel ( Diver 1 and Diver 2)
  • Buil-in SSD storage up to 500GB
  • Backup and redundant recording by the USB external memory
  • Wide  network connectivity
  • Remote management by PC windows, Mac and smartphone by the Remote Explorer APP for Android OS
  • The App allows audio communication with the local supervisor through the speaker of the surface unit without geographic limits.
  • Crystal clear  pictures and movies

For the audio features and the standard accessories description, please refers to the MiniExplorer Deluxe HD user guide.



Mini Explorer Deluxe


Available versions: PLUS - A - V - M (Military)

Special features:

  • Compact design - Small size (30x23x14 cm) and lightweight (5,5 Kg)
  • Allows the streaming audio-video to a remote supervisor via Internet - 4G, local wifi net and Skype
  • It can be used in closed mode by the video glasses, the headphone and the remote control,  under bad weather conditions
  • Usable as a fixed station in containers and/or mobile vehicles by connecting three wide external monitors, an external speaker and a fixed base microphone
  • Long life internal battery


Sub Minicam HD 1080p

Underwater camera with spotlight embedded





Camera:

  • Total weight: 400 gr
  • Lens (mm): 2,8 mm / 3,6 mm
  • Field of view : 120° / 100°  in air
  • Type: AHD Camera
  • Minimum Illumination(Lux): 0.0001Lux
  • Resolution: HD 1080P
  • Sensor: 1/2.9" Sony IMX323
  • Power Consumption(W): 12V 550mA  ( or 24v on demand )
  • Power Supply(V): 12V
  • Dimensions (L x D)(mm): 50mm x 46mm (Diameter)
  • Sensor: CMOS
  • High Definition: 3.0 Megapixels
  • Video Compression Format: H.264
  • Maximum depth of use: 350 mt
  • Container made of Delrin black
  • Scratch Proof front glass
  • Max length of the video umbilical : 500Mt – through coaxial cables or twisted
  • Sub connector: MCBH-4-M ( or other on demand  )





Sub Minicam Set


Available versions:



Cylindrical Shape Black/White

Square Shape Black or White

Special features:

  • Camera and light in one single body connected by a 4 pins underwater connector
  • Internal anti-fog system in the presence of strong temperature fluctuations
  • It uses our exclusive patent " Self Sealing System" for the use of the underwater pressure for a greater sealing of the container
  • Automatic digital video processor embedded for the best viewing in the darkness
  • High resolution CCD
  • Resistance to the corrosion caused by acid







Long life comm audio sets


Available versions:



Kirby Morgan Series

Aga Fullface Masks

Hard Helmets any brand

Special features:

  • Allows the replacement of the single capsule inside both for microphone and speaker in case of failure
  • Are fully sealed and they can stay underwater without damages
  • The containers are made of plastic materials and can be inspected
  • The microphone is very performant





Customized equipment on demand





VicSystem RSM designs and manufactures customized  Full HD video panels and communication devices on demand as well as equipment for any special need.



They can be used in different environments, underwater or in surface,  by using up to 6 operators.


All equipment have specific certifications and they can be made water proof and/or explosion proof.



They are made as portable units or as panels for fixed installations, integrating the network functions for the broadcasting live of audio/video to a remote supervisor via internet or wi-fi


If any specific needs contact us
