New 4K Integrated Audio-Video portable system for underwater surveying and video inspection with audio communication system embedded up to two divers and a supervisor full-half duplex, specially designed for military and government bodies and upgraded with special features
Fully compatible with all video signals and underwater cameras, analog and digital.
Suits well with the old video umbilical on coaxial or twisted cable.
Best quality on the market , crystal clear images, compact design, light weight, long life internal battery, these are some strengths that make it unique than other brands.
Main video features:
- 4 Video Inputs 4K 3480H x 2160V; AHD, CVBS, IP ONVIF, TVI, HD-CVI - 4K- 5MP - 4MP - 2MP - 1080P 25fps
- Fully compatible with all range of underwater cameras on the market and video sources, analog and digital.
- It’s possible to use the old video umbilical cable with the coaxial wire or the twisted cable up to 500 Mt in length
- 1 HDMI Full HD 4K video output for wide monitors or HDMI video split
- 1 AUX HDMI VIDEO INPUT ON THE SCREEN PANEL FOR EXTERNAL SOURCES
- QUAD SCREEN OR FULL SCREEN SWITCH SELECTOR ON THE MAIN PANEL AND ON THE REMOTE CONTROL

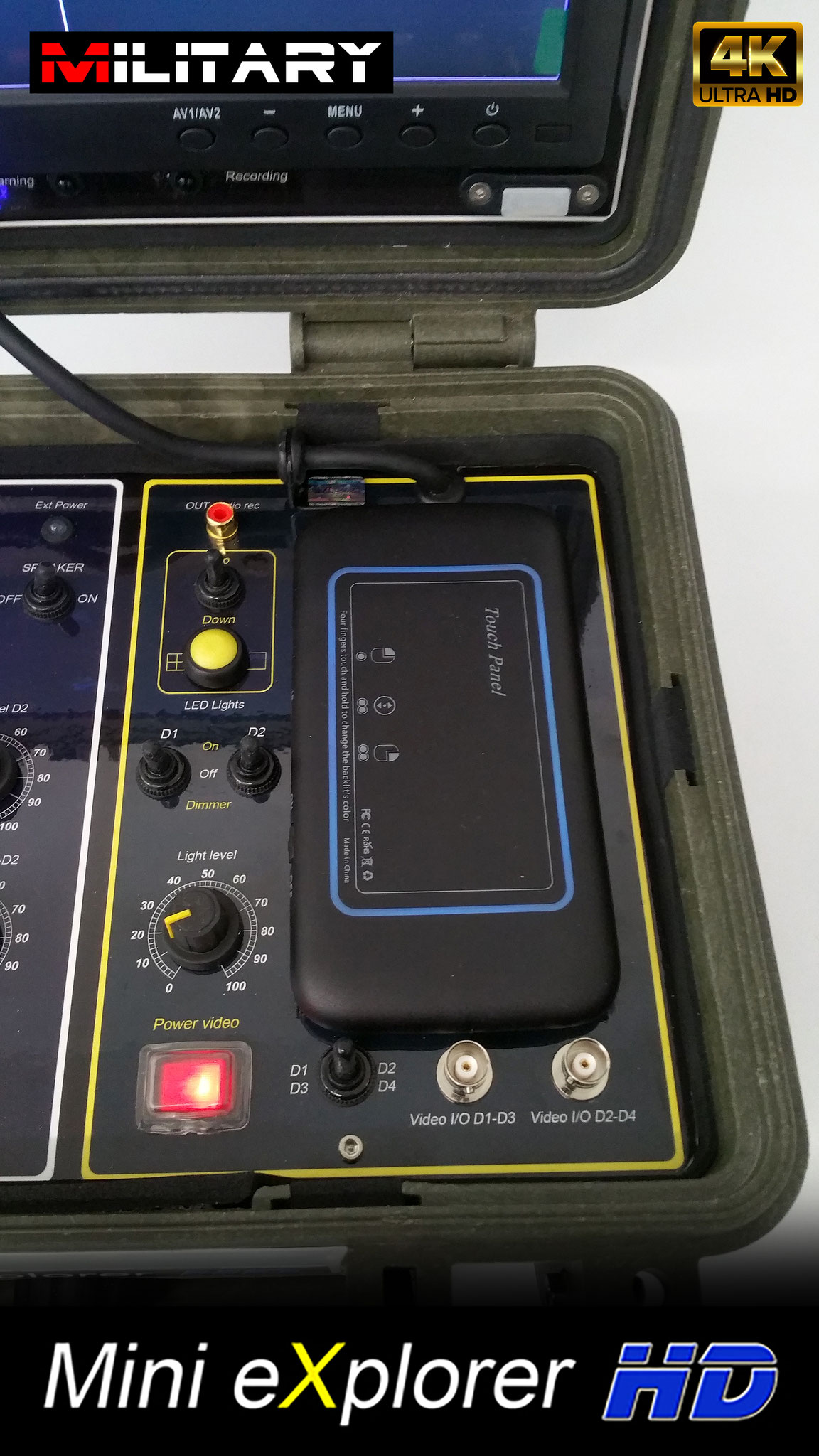

- Management and setup by the Touchpad or Mouse
- Texts Overlay for each of the 4 video channels (60 characters- Digits)
- Embedded screen size: 10,1” or wider screen externally
- Bright digital voltmeter

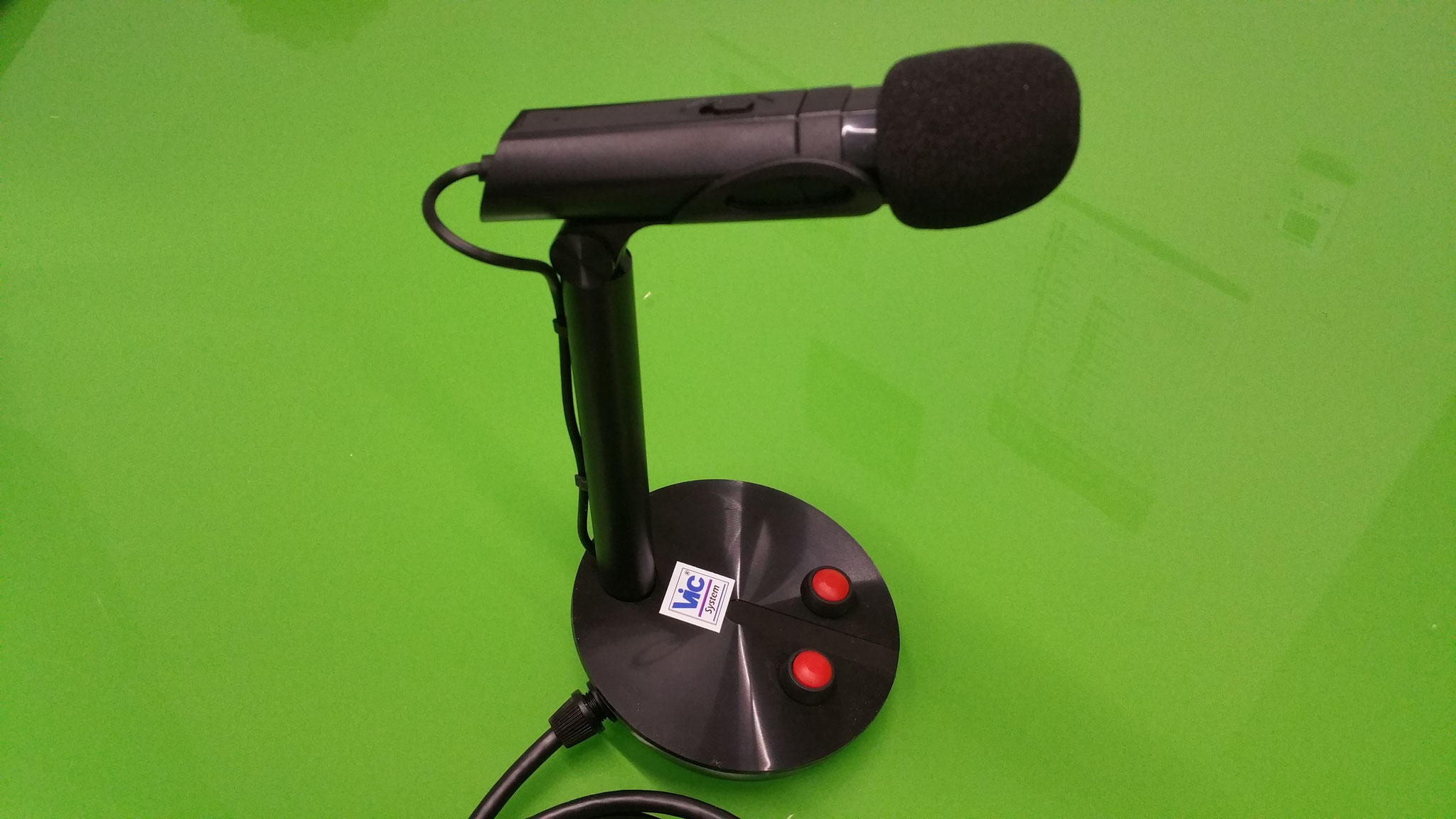

- Fully portable - Small size and lightweight: 20x31x14 cm - 5,5Kg (It can be used even as fixed station + ex monitors+fixed base microphone)
- Built-in long life internal battery - Backup battery socket - Powered by 110-240 Vac -12v - External battery - 12v Power adapter cord
- Warning and Rec led indicator on the screen panel
- Two separate dimmer control switches on the main panel (Diver1 and Diver2)
- Built-in SSD storage 1 TB - About 120 hours at full quality
- Backup and redundant recording by the USB external memory - storage HDD - or Net storage
- Fully network Connectivity and live-streaming over local WI-FI and internet

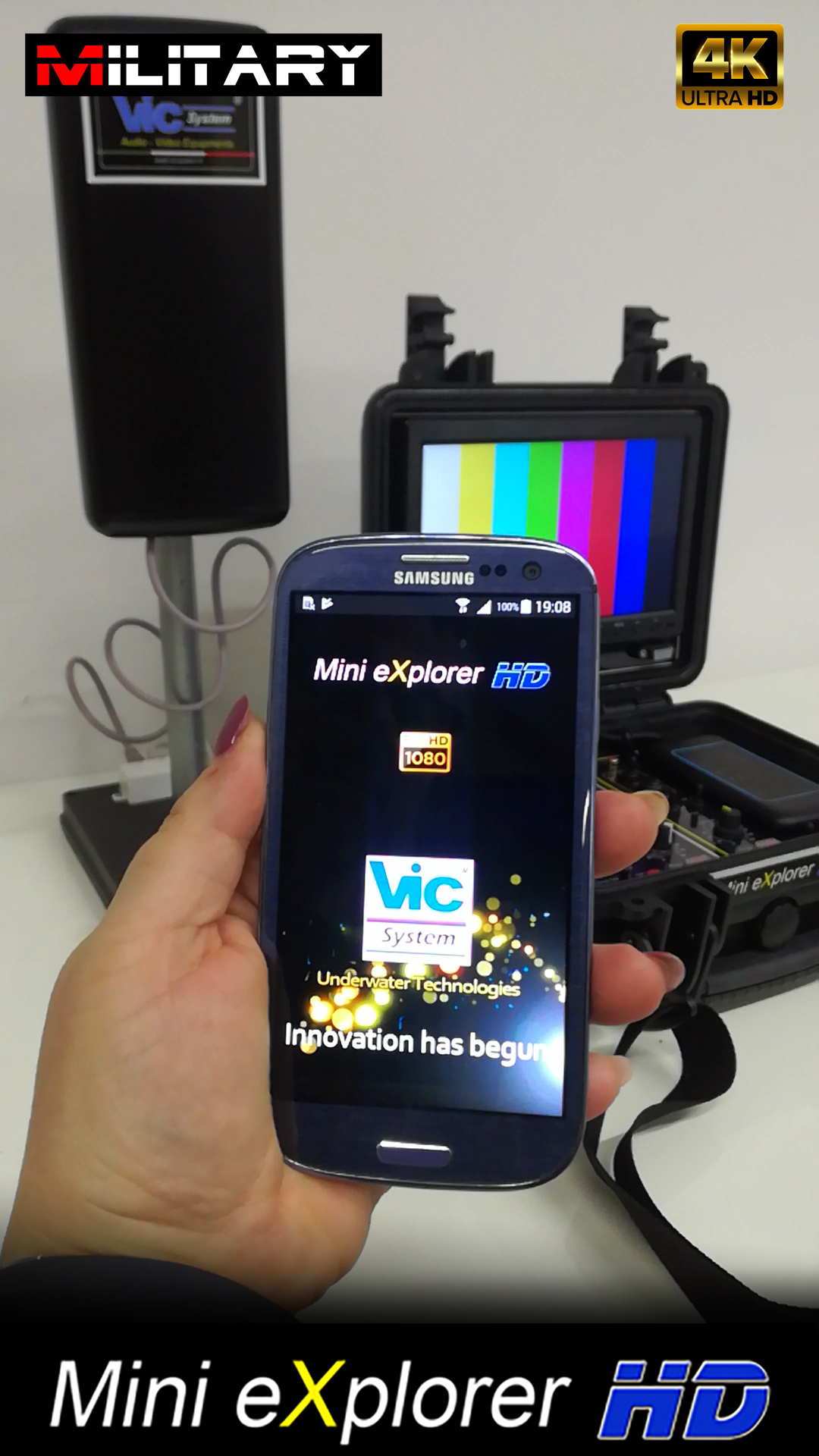

- Remote management by PC Windows, Mac and smartphone by the Remote Explorer APP for Android SO that allows also the talking at distance to the local supervisors directly through the speaker of the surface unit from remote
- Crystal clear real time pictures and playback.
Main audio features:
- Independent on/off switch
- Supports two divers in full duplex or half duplex ( 2-wire or 4-wire)
- External banana connectors for connection to the cords
- Separate adjustment of the volume for general listening, listening level and balance of divers, the level of the headphone volume for the divers and microphone level at the surface.
-
On/off switch for internal speakers
- Automatic MUTE switch in Half duplex mode
- Intercommunication between divers with supervision from the surface of the conversation and the possibility for the supervisor to intervene
- 15w RMS power amplifier with built-in speaker is also active when case is closed.
- Audio output for recording additional audio communications with eternal devices.
- Audio switching functions on the inside panel and on the remote control: communication between surface and diver 1 or diver 2 - between the surface and diver1 + diver2 - between divers with switch blocked in Full Duplex mode for hands-free operations
SPECIAL FEATURES:
-
Automatic restoration of communications in Full Duplex mode in case of failure of the divers microphones.
- Sound peak limiting system to protect the microphones and headphones of divers.
- Extended battery life
- Additional internal shielding
- Router Wi-Fi preconfigured of series
